10S 20A Lithium-ion BMS 18650 Battery Charging Board

689.00 (Inc. GST)
You save

Charging Voltage DC:42V CC/CV
Blance Volatage for single cell 4.1V
Blance Current for single cell 40 ± 20 mA
Current consumption <= 30µA
Max continuous charging current 20A
Max continuous discharging current 20A
Over charge detection voltage 4.25 ± 0.03V
Over charge detection delay time <1000ms
Over charge release voltage 4.15 ± 0.05V
Over Discharge Protection 2.7 ± 0.08V
Over discharge detection delay time 1400ms
Over discharge release voltage 3±0.08V
Over current detection current (discharging) 20A±3A
Release condition Cut load
Over current detection delay time <1300ms

In stock

Compare

Description

Overview of this 10S 20A BMS 18650 Battery Charging Board

Introducing  10S 20A BMS 18650 Battery Charging Board at best price in India. This 10S 20A BMS provides comprehensive protection and efficient management for 18650 lithium batteries. It offers critical safeguards against overcharging, over-discharging, and short circuits, ensuring battery safety and longevity. Ideal for high-power applications, this 10S BMS for 18650 lithium battery delivers reliable performance and durability.

With its 20A current rating, the  20A BMS for 18650 lithium battery charger board supports demanding energy systems. The advanced circuitry ensures optimal charging and discharging, reducing heat and extending battery life. Its robust design and high-performance capabilities make it suitable for both professional and DIY projects. Upgrade your battery management with this efficient and dependable 10S 20A BMS 18650 Battery Charging Board.

Features

  • 20A High Current Support: Handles up to 20A continuous current, suitable for high-power applications. Ensures reliable energy delivery for demanding devices and systems.
  • 10S Configuration: Designed for 10 series lithium-ion cells, providing balanced charging and discharging. Maintains cell balance for improved performance and battery lifespan.
  • Advanced Protection Features: Includes protection against overcharge, overdischarge, short-circuits, and overcurrent. Enhances safety and prevents damage to the battery pack.
  • Efficient Heat Management: Built with components that ensure effective heat dissipation during operation. Prevents overheating and maintains consistent performance under load.
  • Compact and Durable Design: This 10S 20A BMS 18650 battery charging board fits easily into various battery setups and projects. Its durable built ensure reliability and long life in diverse condition.





Specification

No. Tested Item Criterion
1 Voltage Charging Voltage DC:42V CC/CV
Blance Volatage for single cell 4.1V
2 Current Blance Current for single cell 40 ± 20 mA
Current consumption <= 30µA
Max continuous charging current 20A
Max continuous discharging current 20A
3 Over Charge Protection Over charge detection voltage 4.25 ± 0.03V
Over charge detection delay time <1000ms
Over charge release voltage 4.15 ± 0.05V
4 Over discharge detection voltage Over Discharge Protection 2.7 ± 0.08V
Over discharge detection delay time 1400ms
Over discharge release voltage 3±0.08V
5 Over Current Protection Over current detection current (discharging) 20A±3A
Release condition Cut load
Over current detection delay time <1300ms
6 Short Circuit Protection Detection condition (120A) Exterior short circuit
Release condition Cut short circuit
Short circuit detection delay time 300us
7 Temperature Protection Temperature Protection Charging 50°C
Discharging 70°C
8 Interior Resistance Main loop electrify resistance VC=4.2V,RDS≤60mΩ
9 Temperature Operating Temperature -45°C –+65°C
Storage Temperature -45°C+85°C




Package Includes:

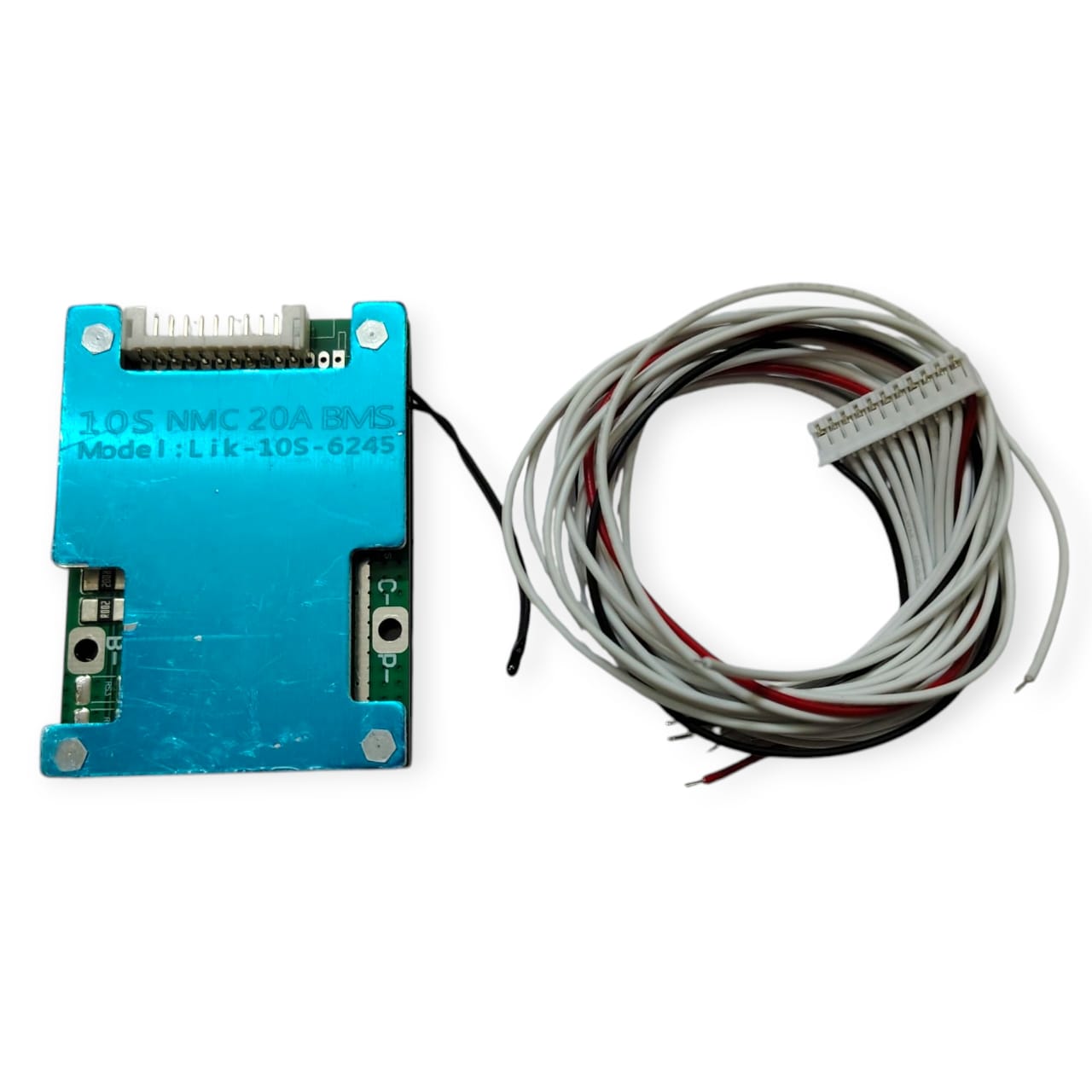

1 X 10S 20A BMS 18650 Battery Charging Board



Additional information

Weight 65 g
Dimensions 65 × 45 × 10 mm
